Procuring complex machined parts carries incredibly high stakes. Tighter tolerances, expensive raw materials, and strict compliance rules demand absolute precision. A simple mistake can easily ruin a costly block of aerospace-grade titanium. You simply cannot afford miscalculations here. However, a significant gap exists in the modern manufacturing market. Many machine shops actively claim they offer "5-axis capabilities." Yet, very few actually possess the engineering rigor, software integration, and strict quality control required to deliver reliable components.
This comprehensive guide bridges that knowledge gap. We provide a strict, vendor-neutral framework to help you effectively evaluate service providers. You will learn how to structure Request for Proposals (RFPs) correctly. We will also help you balance your project budget against actual technical necessities. By following these principles, you can secure high-quality parts on time and protect your supply chain from costly failures.
Not all 5-axis setups are identical; distinguishing between 3+2 positional and continuous 5-axis machining is critical for aligning budget with part geometry.
The actual cost of 5-axis machining is heavily weighted toward front-end programming (CAM) and non-recurring engineering (NRE) rather than just machine time.
Supplier credibility must be verified through specific quality assurance frameworks (e.g., in-process probing, 5-axis CMM capabilities, and AS9100/ISO certifications).
Mitigating manufacturing risk requires evaluating a service provider’s tool clearance strategies, thermal compensation capabilities, and material-specific expertise.
Buyers often assume every complex part requires the most advanced machining process available. This assumption leads to bloated budgets and unnecessary delays. You must validate if the premium pricing of 5-axis CNC machining is truly justified by your specific project success criteria.

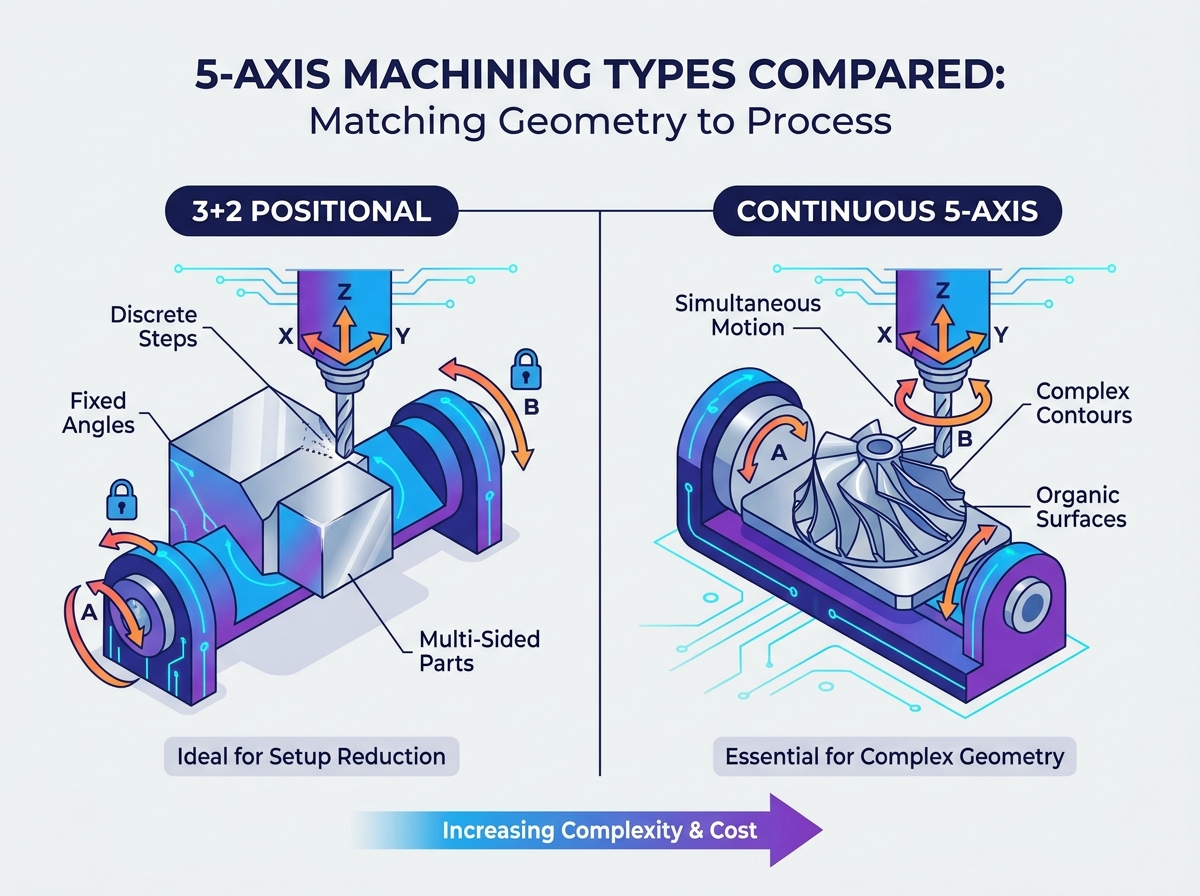

You must first define the technical boundary between continuous and positional processes. Continuous 5-axis milling involves the simultaneous interpolation of all five axes. The cutting tool and the workpiece move constantly against each other in real time. Conversely, 3+2 machining locks the two rotational axes in place during the actual cutting sequence. The machine positions the part at an angle, locks it, and then executes a standard 3-axis toolpath.
You should match your part geometry to the correct process. Use 3+2 positional machining for multi-sided prismatic parts. This approach dramatically reduces setup times while keeping programming relatively simple. Reserve continuous operations strictly for complex organic surfaces. Components like impellers, turbine blades, and aerodynamic aerospace contours require the fluid tool movements only simultaneous interpolation can provide.
Table 1: Process Comparison and Geometry Matching
Machining Type | Axis Movement | Ideal Part Geometry | Programming Complexity |
|---|---|---|---|
3+2 (Positional) | 3 moving, 2 locked during cut | Prismatic, multi-sided geometric shapes | Moderate |
Continuous 5-Axis | All 5 moving simultaneously | Organic curves, impellers, turbine blades | High |
Consolidating setups serves as the primary financial driver for upgrading to five axes. Traditional 3-axis methods often require operators to unclamp, rotate, and re-fixture a part multiple times. Each manual intervention introduces human error and creates tolerance stacking. A 5-axis process drastically reduces these variables by cutting up to five sides of a part in a single setup.
Apply a simple decision heuristic here. Calculate the total cost of multiple manual setups, custom fixturing plates, and the scrap risk associated with 3-axis processing. When these combined costs outweigh the higher hourly rate of advanced equipment, you should immediately transition your part to a 5-axis platform. The ROI becomes clear once you factor in improved geometric tolerance and reduced scrap rates.
Transparently breaking down pricing models helps buyers understand exactly what they are paying for. When you understand the underlying costs, you can optimize your designs and negotiate more effectively with suppliers.
You cannot simply load a CAD file into a machine and press start. Advanced equipment requires highly sophisticated Computer-Aided Manufacturing (CAM) software, such as HyperMill or Mastercam. Generating simultaneous toolpaths requires senior-level programming expertise. Programmers spend hours calculating vectors and simulating paths to avoid catastrophic machine collisions.
These programming efforts fall under Non-Recurring Engineering (NRE) costs. Because programming happens before any metal is cut, low-volume, high-complexity parts carry a disproportionately large front-end cost. When you order a batch of five aerospace brackets, the supplier must amortize twenty hours of CAM programming across those five units. This explains why initial prototype runs appear surprisingly expensive compared to higher volume production orders.
Securing the raw material inside the machine envelope presents unique challenges. Standard vises block tool access to the bottom edges of a part. Five-axis operations require specialized zero-point workholding systems and dovetail fixtures. A dovetail fixture grips only a tiny fraction of the material base. This minimal grip area allows the cutting tool maximum access to the remaining five sides of the stock.
These advanced workholding solutions are expensive. Shops must invest in precision ground base plates, pneumatic clamping mechanisms, and custom dovetail cutters. Suppliers pass a portion of these tooling investments onto the buyer. However, zero-point systems allow operators to swap parts in seconds, which ultimately drives down cycle times during volume production.
You must understand why advanced machine time fundamentally costs more per hour. Shops calculate their hourly burden rates based on several strict financial factors. First, capital equipment depreciation is massive. A top-tier mill easily costs over half a million dollars. Second, the advanced kinematics require specialized maintenance. Rotary trunnions need frequent calibration to maintain sub-micron accuracy. Finally, these machines consume more power and require expensive temperature-controlled environments. All these overhead expenses factor directly into the hourly rate quoted on your invoice.
Separating highly capable manufacturing partners from high-risk vendors requires a rigid vetting framework. Do not rely solely on a shop's marketing materials. You must audit their equipment, metrology practices, and certifications.
Assess a supplier's machine types based on your specific part requirements. There are two primary machine kinematic configurations: trunnion tables and swivel heads. Trunnion tables cradle the part and tilt it along the A and C axes. This setup works best for heavy, large parts because the spindle remains rigid. Conversely, a swivel head machine moves the spindle around a stationary part. This configuration works best when utilizing heavy cutting tools or machining large, awkward components where agile head movement is necessary.
Verify brand-name reliability as a proxy for machine rigidity and precision. Shops investing in tier-one brands like Hermle, DMG Mori, or Mazak demonstrate a commitment to uncompromising quality. These machines utilize cast-iron or polymer-granite beds, which effectively dampen vibrations and yield superior surface finishes.
A high-end milling center is virtually useless without corresponding inspection capabilities. Establish a firm rule: a supplier must operate a 5-axis capable Coordinate Measuring Machine (CMM). You cannot accurately verify complex, sweeping geometric contours using standard hand tools or basic 3-axis probing.
Furthermore, look for in-machine touch probing capabilities. Advanced shops utilize spindle probes to validate part dimensions before un-fixturing the component. This active tool wear compensation ensures critical features remain in tolerance throughout the entire batch run. If an operator unclamps a part and later finds it out of tolerance, re-clamping it accurately is nearly impossible. In-process verification eliminates this risk entirely.
Never take a supplier's word regarding their quality control rigor. Require documented proof of compliance, especially when operating in regulated industries. Evaluate them against a strict checklist of mandatory compliance markers:
ISO 9001:2015: This forms the absolute baseline for any commercial manufacturing facility. It proves they possess a documented Quality Management System (QMS).
AS9100D: Mandatory for aerospace and defense contractors. This standard requires rigid traceability, counterfeit parts prevention, and strict supplier control.
ISO 13485: Essential for medical device manufacturing. It enforces risk management and rigorous lot traceability for implantable or surgical components.
Demonstrating engineering maturity means anticipating what goes wrong before it happens. Mature suppliers utilize preventative strategies to mitigate inherent processing risks.
Simultaneous interpolation introduces a massive risk of machine crashes. When accessing deep cavities at extreme angles, the bulky spindle housing can easily collide with the workpiece or the workholding fixture. A crash at high feed rates destroys spindles, damages the machine geometry, and halts production for weeks.
Evaluate your provider’s use of digital twin simulation prior to running the physical part. Elite shops use software like VERICUT to simulate the exact G-code on a virtual model of their specific machine. This software flags gouges, over-travel limits, and housing collisions before the operator ever loads raw stock into the physical machine. Never award complex 5-axis CNC machining contracts to shops skipping this vital simulation step.
Long cycle times on complex parts cause immense heat build-up. Friction from continuous cutting operations transfers heat directly into the machine casting, the ball screws, and the spindle. As metal heats up, it naturally expands. This thermal displacement causes cutting tools to drift out of position, ruining tight tolerances.
Check if the vendor utilizes machines equipped with actively cooled spindles and internal chiller units. Additionally, verify they use high-resolution linear scales. Linear scales provide real-time positional feedback directly to the machine controller, allowing it to automatically compensate for thermal expansion and maintain absolute accuracy over long production runs.
Different materials require entirely different machining strategies. Hard metals like aerospace-grade titanium or high-temp Inconel alloys present severe challenges. They exhibit poor thermal conductivity, meaning the heat stays in the cutting tool rather than exiting through the chips. These metals require high spindle torque and extreme machine rigidity to prevent chatter.
Conversely, machining aluminum or engineered plastics requires high spindle speeds to clear chips rapidly. If a vendor primarily cuts aluminum, their equipment might lack the low-end torque required to process hardened tool steel efficiently. Always match your material specifications to the supplier's proven historical expertise.
Moving from the evaluation phase to actual quoting requires organized documentation. Clear communication drives qualified inquiries and prevents hidden costs from surfacing later.
Provide a comprehensive technical package to ensure accurate, binding quotes. Missing information leads to bloated estimates as suppliers add buffer pricing to cover unknown risks. Include the following exact requirements in your RFP:
Native 3D CAD files: Export models in universal formats like STEP or IGES.
2D Engineering Drawings: Provide detailed PDF drawings indicating specific tolerances, surface finish requirements, and Geometric Dimensioning and Tolerancing (GD&T) callouts.
Material Specifications: Define the exact alloy grade, temper, and any required material certifications.
Batch Volumes: State your prototype quantities and your projected annual production volumes.
Pay close attention to how a vendor behaves during the quoting phase. You should immediately warn your engineering team against vendors who quote highly complex parts instantly without asking any questions. Precision machining requires clarification. A trustworthy partner will interrogate your GD&T callouts. They will proactively offer Design for Manufacturability (DFM) feedback to help you reduce costs. If a supplier simply returns a price tag without reviewing the technical nuances, they are likely ignoring potential manufacturing traps.
Never commit to a massive blanket purchase order with an unproven supplier. Mitigate your financial risk by employing a strict pilot run strategy. Recommend starting with a First Article Inspection (FAI) or a small micro-batch. Use this initial run to validate their surface finish quality, tolerance adherence, and ability to meet delivery timelines. Once the vendor successfully passes the FAI process, you can safely scale up production volumes.
Choosing a reliable machining service is ultimately an investment in risk mitigation, part consolidation, and ultimate geometric fidelity. By understanding the distinction between positional and continuous kinematics, you can align your part design with the most cost-effective process. Remember to scrutinize NRE costs, mandate digital twin collision simulations, and strictly verify industry certifications. We encourage you to bundle your 3D CAD models, detailed GD&T drawings, and material specifications into a clear RFP. Reach out to qualified vendors today, request a technical DFM review, and demand a transparent quoting process to ensure your next engineering project succeeds flawlessly.
A: Lead times heavily depend on part complexity, material availability, and current shop capacity. Simple prototypes might take 2 to 3 weeks. However, highly complex aerospace components requiring extensive CAM programming, custom fixturing, and thermal treatments typically range from 6 to 10 weeks. Always communicate your deadlines during the RFP phase.
A: High-end machines boast a positioning accuracy of ±0.0001 inches. However, achievable real-world part tolerance depends heavily on the chosen material, part geometry, and thermal stability. While the machine itself is highly accurate, maintaining ±0.0005 inches on a complex physical part requires exceptional tooling, rigid workholding, and strict temperature control.
A: Yes, these machines confidently process extremely hard metals. However, machining hardened steel or titanium significantly increases tool wear and requires much slower feed rates. This slower material removal rate consumes more machine hours, which ultimately increases the final cost of the component.
A: Maximum part size is strictly bound by the specific supplier’s machine work envelope and axis travel limits. While standard trunnion machines easily handle parts the size of a basketball, large gantry-style 5-axis mills can process massive aerospace wing spars spanning several meters in length.
